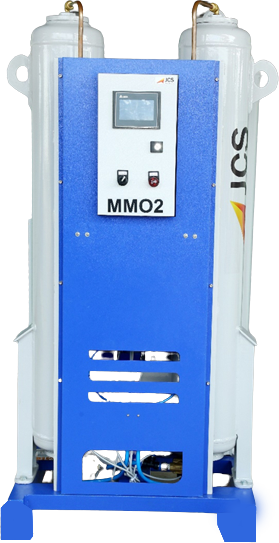

MMO series On-Site Oxygen plant are compact in size and suitable for applications with oxygen requirement less than 90 lpm (5.4 cu.m/hr).
| Model | Oxygen Flow | Equivalent Cylinder Capacity | Air Compressor | Utility Requirements | |||
|---|---|---|---|---|---|---|---|
| lpm | Cu.m / hr | Nos / Day | Kw | cfm | Rooms size on ft | Power Backup | |
| L X B X H | KVA | ||||||
| MMO2 | 33 | 2.0 | 6 | 4.0 | 19 | 10 X 10 X 12 | 7.5 |
| MMO3 | 50 | 3.0 | 10 | 5.5 | 28 | 10 X 16 X 12 | 10.0 |
| MMO5 | 90 | 5.4 | 18 | 7.5 | 40 | 10 X 16 X 12 | 15.0 |
