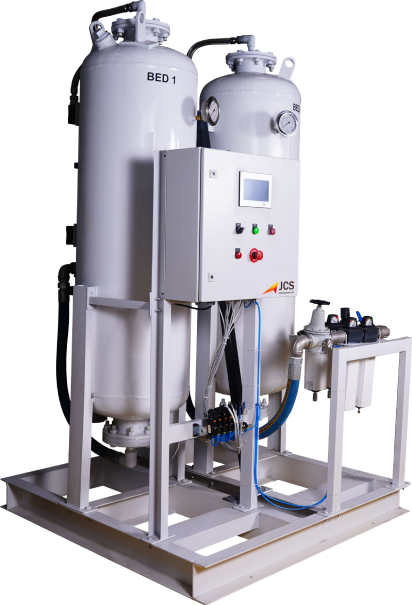

MO Series On-Site Oxygen Plant are Mid and Higher Range capacities and can cater from 150 lpm (9 cu.m/hr) to 980 lpm (58.8 cu,m/hr) of Oxygen requirements.
| Model | Oxygen Flow | Equivalent Cylinder Capacity | Air Compressor | Utility Requirements | |||
|---|---|---|---|---|---|---|---|
| lpm | Cu.m / hr | Nos / Day | Kw | cfm | Rooms size on ft | Power Backup | |
| L X B X H | KVA | ||||||
| MO9 | 150 | 9.0 | 30 | 11 | 72 | 19 X 17 X 15 | 20 |
| MO12 | 200 | 12.0 | 40 | 15 | 92 | 20 X 17 X 15 | 25 |
| MO14 | 240 | 14.4 | 50 | 18 | 120 | 22 X 17 X 16 | 35 |
| MO16 | 280 | 16.8 | 60 | 22 | 136 | 22 X 17 X 16 | 40 |
| MO24 | 400 | 24.0 | 85 | 30 | 194 | 22 X 18 X 16 | 50 |
| MO30 | 500 | 30.0 | 100 | 37 | 255 | 22 X 18 X 16 | 60 |
| MO34 | 580 | 34.8 | 120 | 45 | 290 | 28 X 18 X 16 | 75 |
| MO42 | 700 | 42.0 | 145 | 55 | 390 | 28 X 18 X 16 | 100 |
| MO58 | 980 | 58.8 | 210 | 75 | 515 | 32 X 22 X 16 | 125 |
